• Tehnika injektiranja
  • Injektiranje pukotina
  • Horizontalno brtvljenje
  • Injektiranje u obliku vela i plošno injektiranje
  • Sanacija sljubnica
  • Rudarstvo i tunelogradnja
  • Sustavi sidrenja
    • DESOI sustav spiralnih sidara
    • DESOI sustav spiralnih sidara Sidro plus W
    • DESOI sustav sidara u čarapi
    • DESOI sustav sidrenja - specijal
  • Miješano
  • Strojevi za injektiranje i miješanje
• Industrijska tehnika

Anchor plate

100 x 100 x 8 mm, material stainless steel, square

23130

6

borehole Ø 9 mm

:

23130

:

1 piece

borehole Ø 11 mm

:

23131

:

1 piece

borehole Ø 13 mm

:

23132

:

1 piece

borehole Ø 17 mm

:

23133

:

1 piece

borehole Ø 21 mm

:

23134

:

1 piece

borehole Ø 25 mm

:

23135

:

1 piece

Anchor plate

200 x 200 x 10 mm, material stainless steel, square

20754

4

borehole Ø 13 mm

:

20754

:

1 piece

borehole Ø 17 mm

:

20755

:

1 piece

borehole Ø 21 mm

:

20756

:

1 piece

borehole Ø 25 mm

:

20757

:

1 piece

Anchor plate

Ø 100 x 8 mm, material stainless steel, round

23120

6

borehole Ø 9 mm

:

23120

:

1 piece

borehole Ø 11 mm

:

23121

:

1 piece

borehole Ø 13 mm

:

23122

:

1 piece

borehole Ø 17 mm

:

23123

:

1 piece

borehole Ø 21 mm

:

23124

:

1 piece

borehole Ø 25 mm

:

23125

:

1 piece

Anchor plate

material stainless steel, round

23150

7

Ø 25 x 3 mm, borehole Ø 9 mm

:

23150

:

1 if require

Ø 30 x 3 mm, borehole Ø 11 mm

:

23151

:

1 if require

Ø 35 x 3 mm, borehole Ø 13 mm

:

23152

:

1 if require

Ø 40 x 3 mm, borehole Ø 17 mm

:

23153

:

1 if require

Ø 45 x 3 mm, borehole Ø 21 mm

:

23154

:

1 if require

Ø 55 x 5 mm, borehole Ø 25 mm

:

23155

:

1 if require

Ø 65 x 5 mm, borehole Ø 31 mm

:

23156

:

1 if require

Washer

material: stainless steel A4

400-23-140

:

23140

6

inside Ø 8,4 x outside Ø 16 x 1,6 mm, for thread M8

:

400-23-140

:

23140

:

1 piece

inside Ø 10,5 x outside Ø 20 x 2 mm, for thread M10

:

400-23-141

:

23141

:

1 piece

inside Ø 13 x outside Ø 24 x 2,5 mm, for thread M12

:

400-23-142

:

23142

:

1 piece

inside Ø 17 x outside Ø 30 x 3 mm, for thread M16

:

400-23-143

:

23143

:

1 piece

inside Ø 21 x outside Ø 37 x 3 mm, for thread M20

:

400-23-144

:

23144

:

1 piece

inside Ø 25 x outside Ø 44 x 4 mm, for thread M24

:

400-23-145

:

23145

:

1 piece

Hexagon nut

material: stainless steel A4

400-23-100

:

23100

6

M8, AF13

:

400-23-100

:

23100

:

1 piece

M10, AF17

:

400-23-101

:

23101

:

1 piece

M12, AF19

:

400-23-102

:

23102

:

1 piece

M16, AF24

:

400-23-103

:

23103

:

1 piece

M20, AF30

:

400-23-104

:

23104

:

1 piece

M24, AF36

:

400-23-105

:

23105

:

1 piece

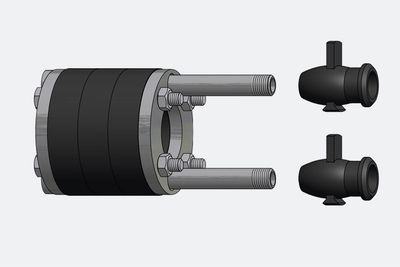

Annulus packer
drill hole Ø 50 mm, anchor Ø 24 mm

clamping rubber 60 mm, 4 axial clamping screw M5, feed pipe and vent pipe each (free passage 6 mm) external thread M8, 2 locking tappets (not mounted), total length 150 mm

:

68629

:

1 piece

Annulus packer

clamping rubber 60 mm, 4 axial clamping screw M6, feed pipe and vent pipe each (free passage 6 mm) external thread M10x1, 2 locking tappets (not mounted), total length 150 mm

68632

6

drill hole Ø 50 mm, anchor Ø 12 mm

:

68632

:

1 piece

drill hole Ø 50 mm, anchor Ø 16 mm

:

68630

:

1 piece

drill hole Ø 60 mm, anchor Ø 12 mm

:

68626

:

1 piece

drill hole Ø 60 mm, anchor Ø 16 mm

:

68624

:

1 piece

drill hole Ø 60 mm, anchor Ø 20 mm

:

68622

:

1 piece

drill hole Ø 60 mm, anchor Ø 24 mm

:

68620

:

1 piece

Annulus packer

clamping rubber 60 mm, 4 axial calmping screw M8, feed pipe and vent pipe each (free passage 9 mm) external thread G1/4", 2 locking tappets (not mounted), total length 150 mm

68612

9

drill hole Ø 70 mm, anchor Ø 20 mm

:

68612

:

1 piece

drill hole Ø 70 mm, anchor Ø 24 mm

:

68610

:

1 piece

drill hole Ø 80 mm, anchor Ø 24 mm

:

68602

:

1 piece

drill hole Ø 80 mm, anchor Ø 36 mm

:

68600

:

1 piece

drill hole Ø 80 mm, anchor Ø 20 mm

:

68604

:

1 piece

drill hole Ø 90 mm, anchor Ø 24 mm

:

68592

:

1 piece

drill hole Ø 90 mm, anchor Ø 36 mm

:

68590

:

1 piece

drill hole Ø 100 mm, anchor Ø 24 mm

:

68582

:

1 piece

drill hole Ø 100 mm, anchor Ø 36 mm

:

68580

:

1 piece

Filling packer

with internal support for stainless steel anchor, connection quick snap, cap

33030

10

Ø 25 mm, max. Ø 16.5 mm, venting hose Ø 6 x 200 mm

:

33030

:

1 piece

Ø 30 mm, max. Ø 21 mm, venting hose Ø 6 x 200 mm

:

33031

:

1 piece

Ø 35 mm, max. Ø 25 mm, venting hose Ø 6 x 200 mm

:

33032

:

1 piece

Ø 40 mm, max. Ø 28 mm, venting hose Ø 6 x 200 mm

:

33033

:

1 piece

Ø 45 mm, max. Ø 25 mm; venting hose Ø 6 x 200 mm

:

33034

:

1 piece

Ø 50 mm, max. Ø 26 mm, venting hose Ø 8 x 200 mm

:

33035

:

1 piece

Ø 32.5 mm, max. Ø 23 mm, venting hose Ø 6 x 200 mm

:

33036

:

1 piece

Ø 55 mm, max. Ø 28 mm, venting hose Ø 8 x 200 mm

:

33037

:

1 piece

Ø 60 mm, max. Ø 31 mm, venting hose Ø 8 x 200 mm

:

33038

:

1 piece

Ø 80 mm, max. Ø 31 mm, venting hose Ø 8 x 200 mm

:

33039

:

1 piece

Filling piece

conical, 50 mm long, borehole Ø 7 mm for venting, borehole Ø 10.5 mm for material line

33040

7

borehole Ø 30 - 35 mm

:

33040

:

1 piece

borehole Ø 35 - 40 mm

:

33041

:

1 piece

borehole Ø 40 - 45 mm

:

33042

:

1 piece

borehole Ø 45 - 50 mm

:

33043

:

1 piece

borehole Ø 50 - 55 mm

:

33044

:

1 piece

borehole Ø 55 - 60 mm

:

33045

:

1 piece

borehole Ø 75 - 80 mm

:

33046

:

1 piece

Plug set

for closing the filling piece, conical, yellow for borehole Ø 7 mm, red for borehole Ø 10.5 mm

:

33050

:

1 piece

Shut-off piece

free passage Ø 7 mm, connection quick snap

33010

3

internal thread M10x1

:

33010

:

100 piece

internal thread R1/4"

:

33000

:

100 piece

internal thread M8

:

33020

:

100 piece

Quick snap
1/4"

LP ball valve R1/2", max. 40 bar, free passage Ø 9 mm, detachable double nipple R1/2", safety bar for underwater works

:

11418

:

1 piece

Blow out nozzle
Ø 17 x 50 mm

aluminium, with 4 outlet openings, internal thread M12x1.25

:

68730

:

1 piece

Coupling
Ø 17 x 28 mm

aluminium, internal thread M12x1.25

:

68731

:

1 piece

Connecting piece
1,000 mm

aluminium, external thread M12x1.25

:

68732

:

1 piece

Protective cover

Ø 220 mm, height 100 mm, thickness of rubber 5 mm, hand grip

:

68733

:

1 piece

Blow out gun

aluminium, internal thread M12x1.25, air hose plug

:

68734

:

1 piece

Flow table test set

impact resistant glass plate with scale, Ø 350 mm, cone and funnel of aluminium, spirit level, crack width gauge, hard-top case

:

68553

:

1 piece

12
